Razor Blade Chop Force Tester

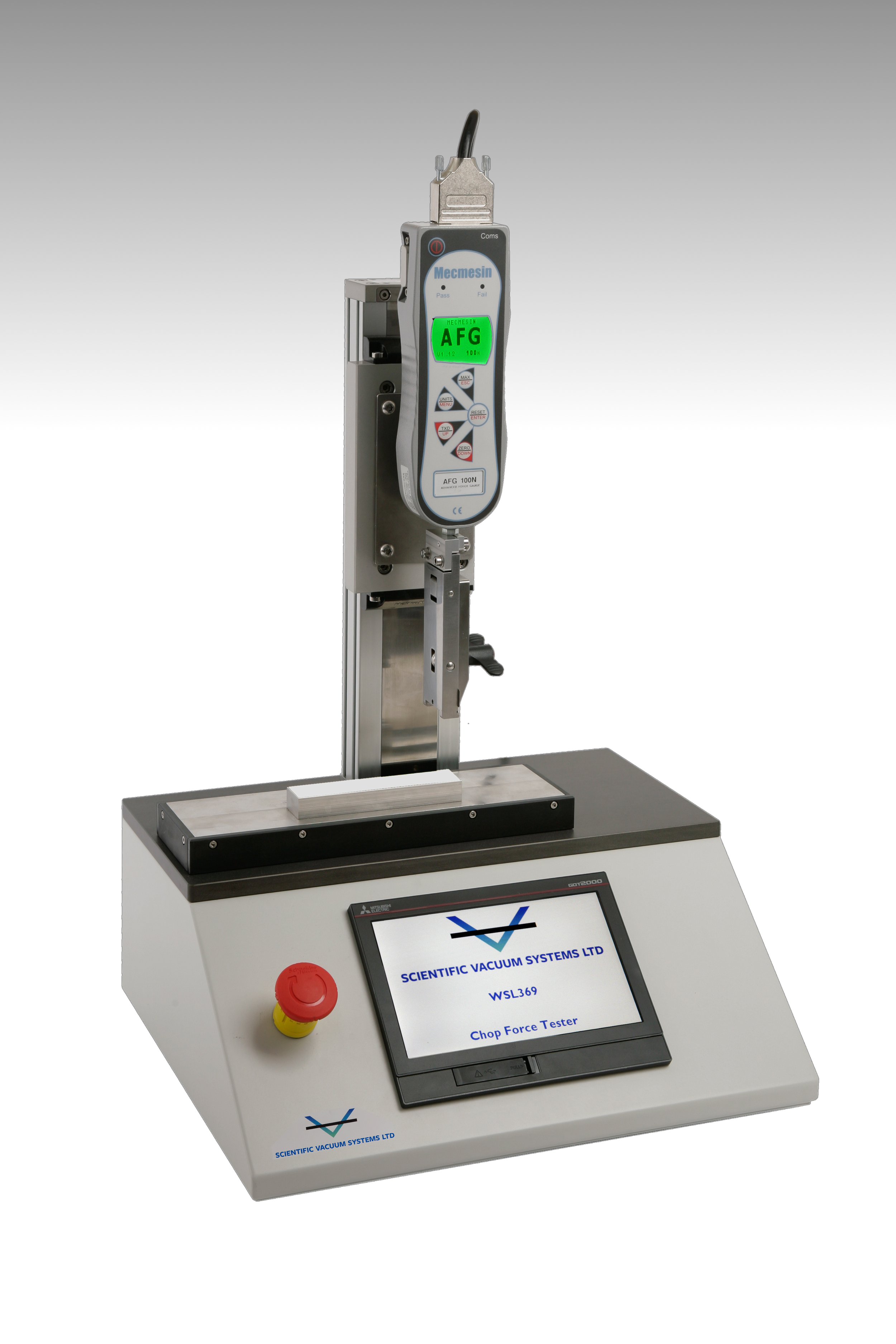

The WSL369 Chop Force Tester is a bench top mounted unit for testing the edge quality of razor blades.

Featuring a vertical ball screw-driven motorised test frame, designed to apply compressive chop forces using a Mecmesin AFG100, 2-100N digital force gauge with load measurement accuracy of 0.1% of full-scale.

Fitted with a universal blade holder assembly for quick and easy mounting of either Double or Single edge razorblades.

The test bed incorporates a servomotor operated horizontal linear lead screw drive table with a 120mm stroke for mounting Whatman chop test paper, allowing a maximum of 100 individual chop tests automatically.

Contact Us

Features

Micro stepping (0.01mm resolution) ball screw drive for extremely accurate and consistent test speed
Multiple selectable cutting speeds and chops
Minimum cycle time by employing fast approach and fast return of blade
Datum positions stored electronically
Universal blade holder using edge location – no need to change holder for different blade types
Easily accessible Blade holder for quick and easy loading and removal of the razorblade
Mecmesin 100N digital force gauge is used for measuring cutting forces
Paper advance via stepper motor operated lead screw enabling up to 100 chop force measurements per blade
Can be used as a standalone unit or networked to a central PC
Specifically designed for environments where throughput, productivity and minimal training are vital and where the use of a computer is not always suitable

Specifications

    Power Supply
    220/240V AC 50Hz or 110V AC 60Hz

    Operating Temperature
    10-35°C

    Max Travel of Load Cell
    100mm

    Max Travel of Linear Stage
    120mm

    Test Speeds
    2 - 1000 mm/min

    Unit of Measure
    mN, daN, N, kN, gf, kgf, ozf, lbf

    Measurement Accuracy
    ±0.1%

    Dimensions
    W 395mm D 335mm H 533mm
